Anyone who’s tried to extract information from documents containing tables within tables knows how easily standard OCR systems collapse under the complexity. Nested tables break context, scramble data hierarchies, and leave you manually fixing what automation should’ve solved. Fortunately, modern AI document processing has evolved beyond flat layouts, now offering context-aware extraction that preserves multi-level relationships and structured outputs from even the most convoluted files.

TLDR:

• Nested tables contain hierarchical data structures that traditional OCR fails to extract, losing important parent-child relationships between data elements

• JavaScript solutions like DataTables handle display well but create extraction challenges when these interfaces appear in static documents

• Traditional OCR often struggles with nested table structures and yields lower accuracy; by contrast, next-gen AI/LLM systems aim to preserve context and structure, significantly improving results in many cases

• Advanced AI workflows often apply techniques such as semantic segmentation of documents and contextual understanding, which help maintain logical parent-child relationships in nested tables

• An LLM-fed document processing pipeline can significantly improve nested table extraction by leveraging context engineering, helping preserve multi-level data relationships more reliably than older methods

Understanding Nested Data Tables

Nested data tables show some of the most complex challenges in document processing. Unlike simple tables with straightforward rows and columns, nested tables contain multiple layers of table elements that create hierarchical data structures within a single document.

These structures appear when tables are embedded inside other table cells, creating parent-child relationships between data elements. Think of an invoice table that contains a sub-table listing individual line items, or a financial report where summary data expands into detailed breakdowns within the same cell structure.

Nested tables turn simple data extraction into a multi-dimensional parsing challenge that requires understanding both structure and context.

The complexity multiplies across different document formats. HTML nested tables stack <table> elements inside <td> cells. PDF documents layer tabular data without clear structural boundaries. Word documents mix table formatting with text blocks and embedded objects.

Types of Nested Tables in Different Formats

HTML nested tables create the most structured form of nesting through DOM hierarchies. These tables embed complete <table> elements within <td> cells, creating parent-child relationships that browsers can parse but extraction tools struggle with. Web applications use this pattern for expandable data grids and multi-level reporting interfaces.

Word document nested tables appear in forms, contracts, and reports where complex layouts demand tables within table cells. These structures often mix text formatting with tabular data, creating hybrid layouts that preserve visual hierarchy but complicate programmatic extraction.

PDF nested tables present the greatest extraction challenge. Financial statements, technical specifications, and regulatory documents layer tabular information without clear structural boundaries. Tables rarely have identical outlines, with some having bounding boxes while others include nested cells that make accurate extraction difficult.

Database-driven nested tables automatically generate hierarchical structures where parent rows expand to reveal child data sets, creating infinite nesting possibilities.

Common Challenges with Nested Table Extraction

Hierarchical relationship preservation creates the primary extraction challenge. When tables nest within other tables, maintaining parent-child data connections becomes important. Traditional extraction tools flatten these relationships, losing the contextual meaning that makes nested data valuable.

Cell context deteriorates across multiple table levels. A nested cell might reference data from its parent table, but extraction tools process each table independently. This breaks logical connections between summary totals and detailed breakdowns, making the extracted data incomplete or meaningless.

Irregular cell spans and merges compound the complexity. Nested tables often use colspan and rowspan attributes that create non-uniform grid structures. Automated table extraction may struggle with tables nested within other tables or when multiple distinct tables overlap visually.

Mixed content types within nested structures create parsing ambiguity where text, numbers, and sub-tables coexist in single cells.

Traditional OCR fails catastrophically with nested layouts. OCR struggles with nested tables, mixed formats, or multi-level line items, especially in invoices, purchase orders, or multi-section forms. The technology reads left-to-right, top-to-bottom without understanding structural relationships.

DataTables and JavaScript Solutions for Nested Tables

DataTables provides strong JavaScript solutions for handling nested table structures through child row functionality and hierarchical data management. The library's row().child API methods let developers display extra details that don't fit into main table layouts.

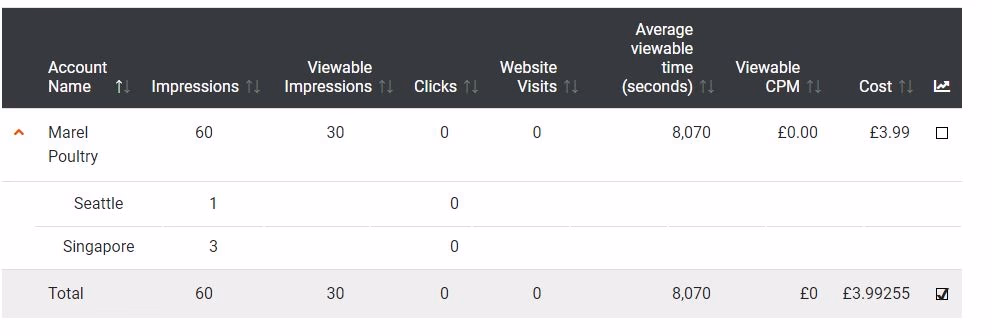

Child rows create expandable interfaces where parent rows contain summary data and nested children show detailed breakdowns. This pattern works particularly well for invoice line items, order details, or any hierarchical dataset requiring progressive disclosure.

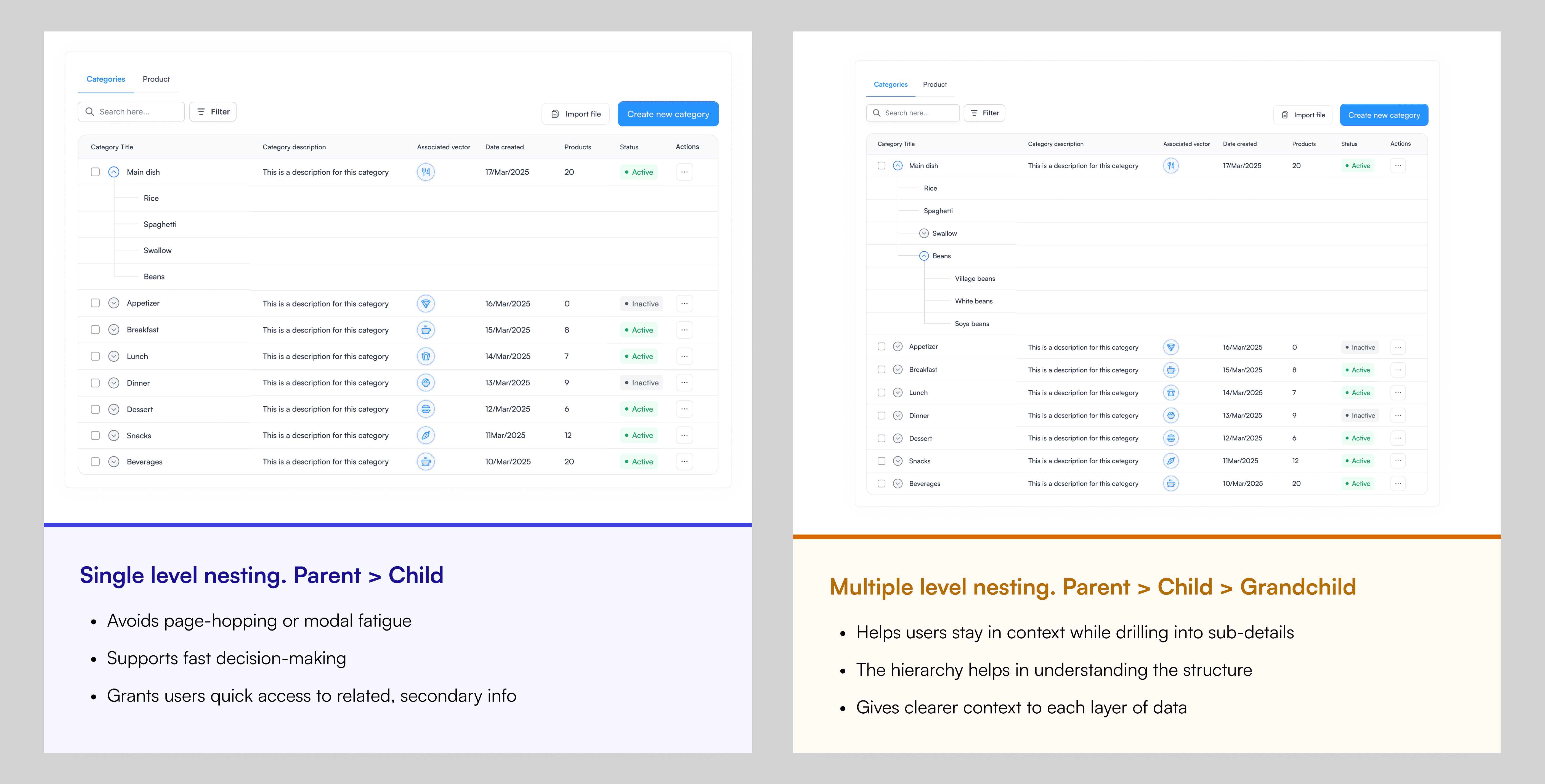

Multi-level row grouping extends this concept by organizing data into collapsible sections. Developers can implement automated expand/collapse functionality that responds to user interactions or data state changes.

JavaScript nested table solutions excel at interactive display but create extraction challenges when documents contain screenshots or exports of these interfaces.

Complex tree structures require careful performance optimization. Large nested datasets can slow display and interaction, especially with deep hierarchical relationships or frequent expand/collapse operations.

OCR and Traditional Extraction Limitations

Traditional OCR systems face fundamental architectural limitations when processing nested table structures. These tools operate on linear text recognition principles, reading documents sequentially without understanding spatial relationships or hierarchical data organization.

OCR fails to identify borderless tables as structured data, treating nested elements as disconnected text blocks. When tables lack clear visual boundaries, OCR engines cannot distinguish between tabular content and regular paragraph text, destroying the logical structure entirely.

Template matching approaches break down completely with nested tables because they expect consistent, predictable layouts. Each nested level introduces structural variations that rigid templates cannot accommodate, forcing manual rule creation for every document variant.

Rule-based extraction systems require exponentially more configuration as nesting complexity increases, making them impractical for real-world document processing.

Context loss represents the most critical failure mode. Traditional tools extract individual cells without preserving parent-child relationships, turning meaningful hierarchical data into disconnected fragments. A nested invoice becomes a jumbled list of numbers without logical connections.

ML table extraction struggles with nested cells, which appear in most complex documents. Early machine learning approaches could identify simple table boundaries but failed when cells contained sub-tables or multi-level data structures.

Modern AI Solutions for Complex Data Extraction

LLM-powered document processing represents a fundamental shift from traditional extraction methods. These systems understand both visual layout and textual content, allowing context-aware extractions even when document formats are irregular or contain multiple nested layers.

Context engineering forms the foundation of modern AI extraction. Instead of processing documents linearly, LLMs analyze spatial relationships, understand hierarchical structures, and preserve parent-child connections that traditional methods destroy. This approach maintains the logical flow between nested table elements.

Semantic chunking lets AI systems segment complex documents intelligently. Instead of arbitrary splits that break table structures, LLMs identify meaningful boundaries that preserve nested relationships. This prevents important data from being separated across processing chunks.

LLM-powered systems excel at understanding document intent and extracting visible text, making them ideal for complex nested structures.

Visual language models combine OCR features with structural understanding. They process document images while maintaining awareness of table hierarchies, cell relationships, and nested data organization that simpler extraction tools miss entirely.

How Extend Solves Nested Table Extraction Challenges

Extend's LLM-powered document processing tackles nested table extraction through advanced context engineering and semantic chunking that preserves hierarchical relationships during processing. Unlike traditional OCR that flattens complex structures, Extend's models understand spatial relationships and maintain parent-child connections across multiple table levels.

Extend's pre-processing pipeline changes raw documents into structured formats while preserving layout integrity. When processing nested tables, Extend identifies table boundaries, recognizes embedded structures, and maintains the logical flow between different hierarchy levels. This prevents the data fragmentation that destroys nested table meaning.

Semantic chunking breaks complex documents into logical sections without severing table relationships. Instead of arbitrary splits that might separate parent tables from their nested children, Extend intelligently segments documents at meaningful boundaries that preserve structural context.

Extend's context engineering makes sure that nested table data retains its hierarchical meaning throughout the entire extraction pipeline.

Multi-level data recognition allows Extend to process tables within tables while understanding their interconnected relationships. The system maps parent-child connections, preserves cell references across nesting levels, and maintains the contextual links that give nested data its business value. Extend's capabilities even allow for single field extraction that require multiple cells or references to determine, e.g., inferring the invoice due date by taking citation of the invoice sent date and payment terms.

Continuously improving pipelines adapt to organization-specific nested table patterns over time. Each correction or validation feeds back into the system, teaching it to handle unique document layouts more accurately. This learning ability proves especially valuable for complex documents like bills of lading that contain multiple nested data structures.

FAQs

How do LLM-powered systems handle nested tables differently than traditional OCR?

LLM-powered systems use context engineering and semantic chunking to preserve hierarchical relationships during extraction, while traditional OCR flattens complex structures and loses parent-child connections. This allows AI systems to maintain the logical flow between nested table elements that gives the data its business meaning.

Can nested tables in PDFs be extracted as accurately as HTML nested tables?

PDF nested tables present greater challenges than HTML because they lack clear structural boundaries, but modern AI systems like Extend can achieve high accuracy on both formats by analyzing spatial relationships and understanding document layout instead of relying solely on markup structure.

How does semantic chunking prevent data loss in nested table extraction?

Semantic chunking uses LLMs to intelligently segment documents at meaningful boundaries instead of arbitrary splits. This ensures that parent tables and their nested children remain connected during processing and prevents the separation of related hierarchical data across different processing chunks. Splitting up documents into semantic sections supports higher reliability and accuracy by having the LLM interpret each sub-section of the documents, before stitching back together.

Final thoughts on extracting data from nested table structures

Nested tables no longer need to derail your document processing workflows. The same hierarchical complexity that overwhelms traditional OCR can now be decoded with AI models built to interpret holistic document context and relationships rather than just text. By maintaining the parent-child links that define real-world business data, tools like Extend turn multi-layered documents into structured, trustworthy outputs your systems can actually use. The result is faster, more reliable extraction that keeps every data point connected to its context, no matter how complex the source file.
