Extracts key terms from commercial and residential lease agreements and contracts.

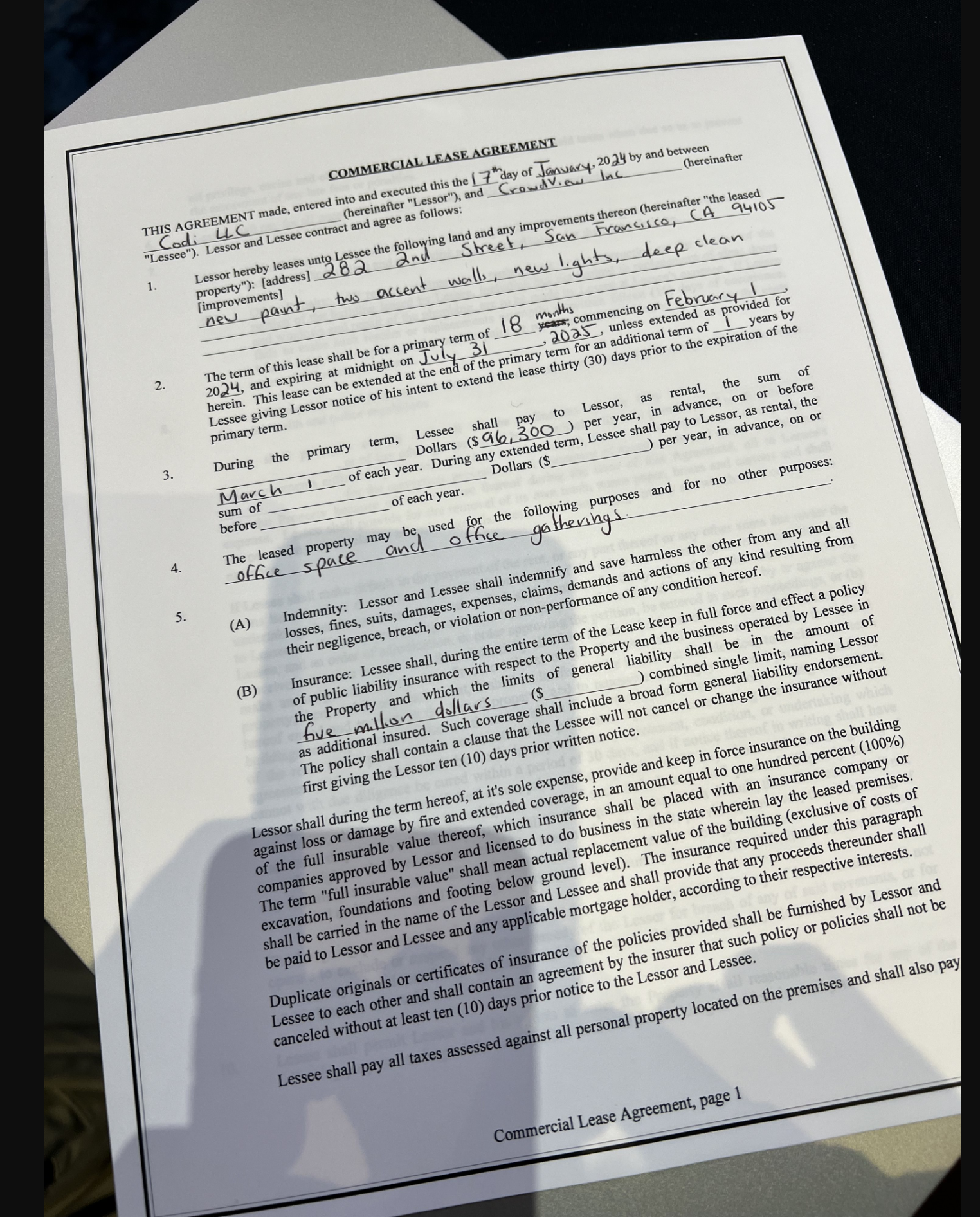

A lease agreement is a legal contract between a lessor and lessee that outlines the terms of property occupancy, including rental amounts, lease duration, property use restrictions, and obligations regarding maintenance, insurance, and indemnification. This template takes in Lease Agreements and outputs markdown (.md) capturing the lease document's full text and layout structure, and JSON (.json) with structured extraction fields including parties, property details, lease term dates, rental amounts, property improvements, and key provisions by using Extend's Parse, Extract primitives.
Converts the document into clean, layout-aware markdown plus structured blocks with spatial metadata.
blockOptions.text.agentic.enabledtruechangedchunkingStrategy.type"document"engine"parse_performance"You can learn more about Parse configuration in Extend's Parse documentation.
Pulls a defined set of fields from the document and returns them as structured JSON matching a schema.
metadata.base_rent.citations[{"page":1,"polygon":[{"x":643,"y":688},{"x":879,"y":653},{"x":883,"y":676},{"x":646,"y":712}],"pageWidth":1524,"pageHeight":1892,"referenceText":"Dollars ($ 96…changedmetadata.base_rent.logprobsConfidencenullchangedmetadata.base_rent.ocrConfidence0.763changedmetadata.base_rent_frequency.citations[{"page":1,"polygon":[{"x":904,"y":649},{"x":1265,"y":587},{"x":1269,"y":609},{"x":908,"y":671}],"pageWidth":1524,"pageHeight":1892,"referenceText":"per year, i…changedmetadata.base_rent_frequency.logprobsConfidencenullchangedmetadata.base_rent_frequency.ocrConfidence0.992changedmetadata.insurance_requirements.citations[{"page":1,"polygon":[{"x":462,"y":1128},{"x":845,"y":1063},{"x":849,"y":1091},{"x":467,"y":1157}],"pageWidth":1524,"pageHeight":1892,"referenceText":"five mill…changedmetadata.insurance_requirements.logprobsConfidencenullchangedmetadata.insurance_requirements.ocrConfidence0.928changedmetadata.landlord_name.citations[{"page":1,"polygon":[{"x":243,"y":368},{"x":385,"y":345},{"x":389,"y":369},{"x":247,"y":391}],"pageWidth":1524,"pageHeight":1892,"referenceText":"Codi LLC"}]changedmetadata.landlord_name.logprobsConfidencenullchangedmetadata.landlord_name.ocrConfidence0.992changedmetadata.landlord_signatory.citations[]changedmetadata.landlord_signatory.logprobsConfidencenullchangedmetadata.late_fee.citations[]changedmetadata.late_fee.logprobsConfidencenullchangedmetadata.lease_end_date.citations[{"page":1,"polygon":[{"x":319,"y":600},{"x":643,"y":549},{"x":647,"y":571},{"x":322,"y":622}],"pageWidth":1524,"pageHeight":1892,"referenceText":"2024, and exp…changedmetadata.lease_end_date.logprobsConfidencenullchangedmetadata.lease_end_date.ocrConfidence0.991changedmetadata.lease_reference_number.citations[]changedmetadata.lease_reference_number.logprobsConfidencenullchangedmetadata.lease_start_date.citations[{"page":1,"polygon":[{"x":834,"y":497},{"x":1026,"y":465},{"x":1029,"y":484},{"x":837,"y":516}],"pageWidth":1524,"pageHeight":1892,"referenceText":"years; comm…changedmetadata.lease_start_date.logprobsConfidencenullchangedmetadata.lease_start_date.ocrConfidence0.654changedmetadata.lease_term_months.citations[{"page":1,"polygon":[{"x":315,"y":577},{"x":762,"y":507},{"x":765,"y":528},{"x":318,"y":598}],"pageWidth":1524,"pageHeight":1892,"referenceText":"The term of t…changedmetadata.lease_term_months.logprobsConfidencenullchangedmetadata.lease_term_months.ocrConfidence0.984changedmetadata.lease_title.citations[{"page":1,"polygon":[{"x":507,"y":263},{"x":865,"y":209},{"x":868,"y":228},{"x":509,"y":282}],"pageWidth":1524,"pageHeight":1892,"referenceText":"COMMERCIAL LE…changedmetadata.lease_title.logprobsConfidencenullchangedmetadata.lease_title.ocrConfidence0.992changedmetadata.maintenance_responsibilities.citations[]changedmetadata.maintenance_responsibilities.logprobsConfidencenullchangedmetadata.payment_due_date.citations[{"page":1,"polygon":[{"x":336,"y":764},{"x":438,"y":747},{"x":442,"y":770},{"x":340,"y":787}],"pageWidth":1524,"pageHeight":1892,"referenceText":"March"},{"pag…changedmetadata.payment_due_date.logprobsConfidencenullchangedmetadata.payment_due_date.ocrConfidence0.654changedmetadata.permitted_use.citations[{"page":1,"polygon":[{"x":363,"y":880},{"x":972,"y":784},{"x":977,"y":813},{"x":368,"y":910}],"pageWidth":1524,"pageHeight":1892,"referenceText":"office space …changedmetadata.permitted_use.logprobsConfidencenullchangedmetadata.permitted_use.ocrConfidence0.892changedmetadata.premises_address.citations[{"page":1,"polygon":[{"x":499,"y":411},{"x":1220,"y":299},{"x":1223,"y":323},{"x":503,"y":435}],"pageWidth":1524,"pageHeight":1892,"referenceText":"282 2nd Str…changedmetadata.premises_address.logprobsConfidencenullchangedmetadata.premises_address.ocrConfidence0.881changedmetadata.premises_description.citations[{"page":1,"polygon":[{"x":499,"y":411},{"x":1220,"y":299},{"x":1223,"y":323},{"x":503,"y":435}],"pageWidth":1524,"pageHeight":1892,"referenceText":"282 2nd Str…changedmetadata.premises_description.logprobsConfidencenullchangedmetadata.premises_description.ocrConfidence0.881changedmetadata.renewal_option.citations[{"page":1,"polygon":[{"x":318,"y":623},{"x":1101,"y":497},{"x":1105,"y":520},{"x":322,"y":645}],"pageWidth":1524,"pageHeight":1892,"referenceText":"herein. Thi…changedmetadata.renewal_option.logprobsConfidencenullchangedmetadata.renewal_option.ocrConfidence0.654changedmetadata.security_deposit.citations[]changedmetadata.security_deposit.logprobsConfidencenullchangedmetadata.signing_date.citations[{"page":1,"polygon":[{"x":217,"y":348},{"x":1102,"y":217},{"x":1106,"y":237},{"x":220,"y":371}],"pageWidth":1524,"pageHeight":1892,"referenceText":"this the 17…changedmetadata.signing_date.logprobsConfidencenullchangedmetadata.signing_date.ocrConfidence0.862changedmetadata.tenant_name.citations[{"page":1,"polygon":[{"x":772,"y":286},{"x":966,"y":258},{"x":969,"y":278},{"x":775,"y":307}],"pageWidth":1524,"pageHeight":1892,"referenceText":"CrowdView Inc…changedmetadata.tenant_name.logprobsConfidencenullchangedmetadata.tenant_name.ocrConfidence0.865changedmetadata.tenant_signatory.citations[]changedmetadata.tenant_signatory.logprobsConfidencenullchangedmetadata.termination_clause.citations[]changedmetadata.termination_clause.logprobsConfidencenullchangedvalue.base_rent.amount96300changedvalue.base_rent.iso_4217_currency_code"USD"changedvalue.base_rent_frequency"annually"changedvalue.insurance_requirements"Lessee must maintain public liability insurance with general liability limits of $5,000,000 combined single limit, naming Lessor as additional insured, includi…changedvalue.landlord_name"Codi LLC"changedvalue.landlord_signatorynullchangedvalue.late_fee.amountnullchangedvalue.late_fee.iso_4217_currency_codenullchangedvalue.lease_end_date"2025-07-31"changedvalue.lease_reference_numbernullchangedvalue.lease_start_date"2024-02-01"changedvalue.lease_term_months18changedvalue.lease_title"Commercial Lease Agreement"changedvalue.maintenance_responsibilitiesnullchangedvalue.payment_due_date"March 1 of each year"changedvalue.permitted_use"office space and office gatherings"changedvalue.premises_address"282 2nd Street, San Francisco, CA 94105"changedvalue.premises_description"282 2nd Street, San Francisco, CA 94105 with improvements including new paint, two accent walls, new lights, deep clean"changedvalue.renewal_option"The lease can be extended at the end of the primary term for an additional term of 1 year, with the Lessee giving Lessor notice of intent to extend the lease t…changedvalue.security_deposit.amountnullchangedvalue.security_deposit.iso_4217_currency_codenullchangedvalue.signing_date"2024-01-17"changedvalue.tenant_name"CrowdView Inc"changedvalue.tenant_signatorynullchangedvalue.termination_clausenullchangedYou can learn more about Extract configuration in Extend's Extract documentation.
{
"name": "Commercial / residential leases Processing Pipeline",
"steps": [
{
"name": "startTrigger1",
"type": "TRIGGER",
"next": [
{
"step": "parse1"
}
]
},
{
"name": "parse1",
"type": "PARSE",
"config": {
"parseConfig": {
"blockOptions": {
"text": {
"agentic": {
"enabled": true
}
}
},
"chunkingStrategy": {
"type": "document"
}
}
},
"next": [
{
"step": "extraction2"
}
]
},
{
"name": "extraction2",
"type": "EXTRACT"
}
]
}# Commercial / Residential Leases Processing — Extend AI Skill
## What this pipeline does
Automatically extracts critical lease agreement data from commercial and residential lease documents by first parsing the full document to markdown, then structurally extracting 17+ key fields (parties, dates, rent terms, insurance requirements, renewal options) into a normalized JSON schema. Handles complex multi-section legal documents with varied clause structures, OCR-scanned originals, and typed handwriting via agentic OCR.
## When to use this
- **Lease portfolio ingestion**: Mass upload 100+ lease agreements and extract normalized records for database import or risk analysis
- **Due diligence & M&A**: Extract rental terms, expiration dates, renewal clauses, and insurance requirements across target properties in minutes
- **Renewal pipeline**: Identify all leases expiring within 12 months by filtering on `lease_end_date` and extract renewal terms automatically
- **Tenant/landlord compliance**: Validate insurance requirements, permitted use, and maintenance responsibilities across a portfolio
- **Workflow automation**: Feed extracted data directly into CRMs, property management systems, or legal review workflows without manual data entry
## Processor pipeline
### Step 1: Parse (parse_performance + agentic OCR)
**Purpose**: Convert lease document to structured markdown for context and citation generation.
**Config**:
- `engine: "parse_performance"` — Extend AI's highest-accuracy parser, tuned for legal documents with complex layouts, multi-column text, signature blocks, and embedded tables
- `blockOptions.text.agentic.enabled: true` — Activates agentic OCR fallback for scanned/handwritten leases; automatically detects low-confidence regions and re-processes with vision models
- `chunkingStrategy.type: "document"` — Keeps entire lease as one chunk, preserving clause relationships and context across pages
**Why**: Leases are legal contracts where clause ordering and cross-references matter. Document-level chunking prevents extraction of terms in isolation. Agentic OCR handles real-world documents (faxes, scans, mixed handwriting) that basic OCR fails on.
### Step 2: Extract (extraction_performance + Zod schema)
**Purpose**: Pull 17 structured fields into strongly-typed JSON, with citations pointing to source text and bounding boxes.
**Config**:
- Schema includes date fields (`lease_start_date`, `lease_end_date`, `signing_date`), currency fields (`base_rent`, `late_fee`, `security_deposit`), text fields (`tenant_name`, `landlord_name`, `permitted_use`), and complex nested objects (`base_rent: { amount, iso_4217_currency_code }`)
- `baseProcessor: "extraction_performance"` — Production-grade extractor with highest accuracy for multi-page legal documents
- Field descriptions are explicit and legally precise (e.g., "Total annual rent due, excluding taxes and additional charges") to drive accuracy
**Why**: Leases contain dollar amounts, dates, and legal terms that require structured extraction. Zod schema enforces type safety and nullable fields where information may be absent (e.g., not all leases have a late fee). Citations allow downstream human review to validate extracted values against source.
---
## TypeScript implementation
---
## CLI equivalent
```bash
# Step 1: Parse lease to markdown
extend parse lease.pdf --config '{
"blockOptions": {
"text": { "agentic": { "enabled": true } }
},
"chunkingStrategy": { "type": "document" }
}' > lease.md
# Step 2: Extract fields using schema file
extend extract lease.pdf --schema lease-schema.json
```
**lease-schema.json** (Zod schema converted to JSON):
```json
{
"type": "object",
"properties": {
"lease_title": { "type": ["string", "null"], "description": "Title of the lease agreement" },
"tenant_name": { "type": ["string", "null"], "description": "Full legal name of the tenant" },
"landlord_name": { "type": ["string", "null"], "description": "Full legal name of the landlord" },
"premises_address": { "type": ["string", "null"], "description": "Full street address of leased property" },
"lease_start_date": { "type": ["string", "null"], "description": "Lease start date (ISO yyyy-mm-dd)" },
"lease_end_date": { "type": ["string", "null"], "description": "Lease end date (ISO yyyy-mm-dd)" },
"lease_term_months": { "type": ["number", "null"], "description": "Lease term length in months" },
"base_rent": {
"type": "object",
"properties": {
"amount": { "type": ["number", "null"], "description": "Rent amount" },
"iso_4217_currency_code": { "type": ["string", "null"], "description": "Currency code (USD, CAD, etc.)" }
}
},
"security_deposit": {
"type": "object",
"properties": {
"amount": { "type": ["number", "null"], "description": "Deposit amount" },
"iso_4217_currency_code": { "type": ["string", "null"], "description": "Currency code" }
}
},
"permitted_use": { "type": ["string", "null"], "description": "Permitted use of premises (office, retail, residential, etc.)" },
"insurance_requirements": { "type": ["string", "null"], "description": "Insurance requirements and liability limits" },
"renewal_option": { "type": ["string", "null"], "description": "Renewal or extension terms and notice requirements" },
"termination_clause": { "type": ["string", "null"], "description": "Early termination conditions and penalties" },
"payment_due_date": { "type": ["string", "null"], "description": "When rent is due (e.g., 1st of each month)" },
"base_rent_frequency": { "type": ["string", "null"], "description": "Frequency of rent payments (monthly, annually, etc.)" },
"lease_reference_number": { "type": ["string", "null"], "description": "Lease reference or deal ID" },
"signing_date": { "type": ["string", "null"], "description": "Date lease was signed (ISO yyyy-mm-dd)" },
"premises_description": { "type": ["string", "null"], "description": "Physical description, improvements, square footage" },
"late_fee": {
"type": "object",
"properties": {
"amount": { "type": ["number", "null"], "description": "Late fee amount" },
"iso_4217_currency_code": { "type": ["string", "null"], "description": "Currency code" }
}
},
"tenant_signatory": { "type": ["string", "null"], "description": "Name and title of tenant signatory" },
"landlord_signatory": { "type": ["string", "null"], "description": "Name and title of landlord signatory" },
"maintenance_responsibilities": { "type": ["string", "null"], "description": "Maintenance and repair obligations" }
}
}
```
---
## Schema
The extraction schema captures 17 core lease fields in a single flat object:
```json
{
"type": "object",
"properties": {import fs from "fs";
import { ExtendClient, extendDate, extendCurrency } from "extend-ai";
import { z } from "zod";
const client = new ExtendClient({ token: process.env.EXTEND_API_KEY });
/**
* Extract key fields from a commercial or residential lease agreement.
* Pipeline: Parse to markdown → Extract 17 structured fields with citations.
*/
export async function processCommercialresidentialleases(
filePath: string
): Promise<void> {
console.log(`\n📄 Processing lease: ${filePath}`);
// Step 1: Read file and convert to data URL for SDK (local file support)
const fileBuffer = fs.readFileSync(filePath);
const dataUrl = `data:application/octet-stream;base64,${fileBuffer.toString("base64")}`;
// Step 2: Parse to markdown with agentic OCR enabled
console.log("🔍 Parsing lease document...");
const parseRun = await client.parseRuns.createAndPoll({
file: { url: dataUrl },
config: {
blockOptions: {
text: {
agentic: {
enabled: true, // Handles scans, handwriting, complex layouts
},
},
},
chunkingStrategy: {
type: "document", // Keep full lease as one chunk
},
},
});
if (parseRun.status !== "PROCESSED") {
console.error(`❌ Parse failed with status: ${parseRun.status}`);
return;
}
const markdown = parseRun.output.chunks.map((c) => c.content).join("\n\n");
console.log(`✅ Parsed ${markdown.length} characters of markdown`);
// Step 3: Extract structured lease fields
console.log("📋 Extracting lease fields...");
const leaseSchema = z.object({
lease_title: z
.string()
.nullable()
.describe(
"Title or name of the lease agreement, e.g. 'Commercial Lease Agreement' or 'Residential Lease'"
),
tenant_name: z
.string()
.nullable()
.describe(
"Full legal name of the tenant (lessee), individual or business entity"
),
landlord_name: z
.string()
.nullable()
.describe(
"Full legal name of the landlord (lessor), individual or business entity"
),
lease_reference_number: z
.string()
.nullable()
.describe(
"Lease reference number, agreement number, or deal ID assigned by landlord or broker"
),
premises_address: z
.string()
.nullable()
.describe(
"Full street address, city, state, ZIP of the leased property, e.g. '123 Main St, San Francisco, CA 94105'"
),
premises_description: z
.string()
.nullable()
.describe(
"Description of improvements, fixtures, or physical condition of premises, e.g. 'office space, newly painted, 5,000 sq ft'"
),
lease_start_date: extendDate().describe(
"Lease commencement date (ISO yyyy-mm-dd)"
),
lease_end_date: extendDate().describe(
"Lease expiration date (ISO yyyy-mm-dd)"
),
lease_term_months: z
.number()
.nullable()
.describe("Primary lease term length in months, e.g. 12, 24, 36"),
signing_date: extendDate().describe(
"Date both parties signed the lease (ISO yyyy-mm-dd)"
),
permitted_use: z
.string()
.nullable()
.describe(
"Permitted use of premises, e.g. 'office space', 'retail', 'residential apartment'"
),
base_rent: extendCurrency().describe(
"Base annual or monthly rent amount with currency code"
),
base_rent_frequency: z
.string()
.nullable()
.describe(
"Frequency of rent payments, e.g. 'monthly', 'quarterly', 'annually'"
),
payment_due_date: z
.string()
.nullable()
.describe(
"Due date for rent payment, e.g. 'the 1st of each month' or 'March 1 of each year'"
),
late_fee: extendCurrency().describe(
"Late fee or penalty amount if rent is overdue, with currency code"
),
security_deposit: extendCurrency().describe(
"Security deposit amount held by landlord, with currency code"
),
renewal_option: z
.string()
.nullable()
.describe(
"Description of renewal or extension option, including notice requirements and new term length"
),
termination_clause: z
.string()
.nullable()
.describe(
"Early termination conditions, including notice period and any penalties or fees"
),
insurance_requirements: z
.string()
.nullable()
.describe(
"Insurance requirements for tenant and/or landlord, including coverage types, limits, and notice periods for cancellation"
),
maintenance_responsibilities: z
.string()
.nullable()
.describe(
"Description of repairs, maintenance, and upkeep responsibilities, e.g. who pays for repairs, utilities, property taxes"
),
tenant_signatory: z
.string()
.nullable()
.describe("Name and title of person who signed lease on behalf of tenant"),
landlord_signatory: z
.string()
.nullable()
.describe(
"Name and title of person who signed lease on behalf of landlord"
),
});
const extractRun = await client.extractRuns.createAndPoll({
file: { url: dataUrl },
config: {
schema: leaseSchema,
},
});
if (extractRun.status !== "PROCESSED") {
console.error(`❌ Extraction failed with status: ${extractRun.status}`);
return;
}
const extractedData = extractRun.output.value;
// Step 4: Display results
console.log("\n✅ Extraction complete!\n");
console.log("=== EXTRACTED LEASE DATA ===\n");
console.log(`📌 Title: ${extractedData.lease_title || "(not found)"}`);
console.log(`🏢 Landlord: ${extractedData.landlord_name || "(not found)"}`);
console.log(`👤 Tenant: ${extractedData.tenant_name || "(not found)"}`);
console.log(`📍 Address: ${extractedData.premises_address || "(not found)"}`);
console.log(
`📅 Start: ${extractedData.lease_start_date || "(not found)"} | End: ${extractedData.lease_end_date || "(not found)"}`
);
console.log(
`⏱️ Term: ${extractedData.lease_term_months ? `${extractedData.lease_term_months} months` : "(not found)"}`
);
console.log(
`💰 Base Rent: ${extractedData.base_rent.amount ? `${extractedData.base_rent.amount} ${extractedData.base_rent.iso_4217_currency_code || "USD"}` : "(not found)"} / ${extractedData.base_rent_frequency || "?"}`
);
console.log(
`🔐 Security Deposit: ${extractedData.security_deposit.amount ? `${extractedData.security_deposit.amount} ${extractedData.security_deposit.iso_4217_currency_code || "USD"}` : "(not found)"}`
);
console.log(
`⚖️ Permitted Use: ${extractedData.permitted_use || "(not found)"}`
);
console.log(
`🔄 Renewal: ${extractedData.renewal_option ? extractedData.renewal_option.substring(0, 80) + "..." : "(not found)"}`
);
console.log(
`🛡️ Insurance: ${extractedData.insurance_requirements ? extractedData.insurance_requirements.substring(0, 80) + "..." : "(not found)"}`
);
// Step 5: Output full JSON for downstream processing
console.log("\n=== FULL EXTRACTED JSON ===\n");
console.log(JSON.stringify(extractedData, null, 2));
}
// Invoke with command-line file argument
const filePath = process.argv[2];
if (!filePath) {
console.error("Usage: npx ts-node solution.ts <path-to-lease.pdf>");
process.exit(1);
}
processCommercialresidentialleases(filePath).catch((err) => {
console.error("Pipeline error:", err);
process.exit(1);
});import os
import sys
import base64
from extend_ai import Extend
client = Extend(token=os.environ["EXTEND_API_KEY"])
def process_commercial_residential_leases(file_path: str) -> None:
"""
Extract key fields from a commercial or residential lease agreement.
Pipeline: Parse to markdown → Extract 17 structured fields with citations.
"""
print(f"\n📄 Processing lease: {file_path}")
# Step 1: Read file and convert to data URL for SDK (local file support)
with open(file_path, "rb") as f:
file_buffer = f.read()
data_url = f"data:application/octet-stream;base64,{base64.b64encode(file_buffer).decode('utf-8')}"
# Step 2: Parse to markdown with agentic OCR enabled
print("🔍 Parsing lease document...")
parse_run = client.parse_runs.create_and_poll(
file={"url": data_url},
config={
"block_options": {
"text": {
"agentic": {
"enabled": True, # Handles scans, handwriting, complex layouts
},
},
},
"chunking_strategy": {
"type": "document", # Keep full lease as one chunk
},
},
)
if parse_run.status != "PROCESSED":
print(f"❌ Parse failed with status: {parse_run.status}")
return
markdown = "\n\n".join([c["content"] for c in parse_run.output["chunks"]])
print(f"✅ Parsed {len(markdown)} characters of markdown")
# Step 3: Extract structured lease fields
print("📋 Extracting lease fields...")
lease_schema = {
"type": "object",
"properties": {
"lease_type": {
"type": ["string", "null"],
"description": "Type of lease (Commercial or Residential)",
},
"lessor_name": {
"type": ["string", "null"],
"description": "Full legal name of the lessor/landlord",
},
"lessee_name": {
"type": ["string", "null"],
"description": "Full legal name of the lessee/tenant",
},
"execution_date": {
"type": ["string", "null"],
"description": "Date the lease agreement was executed (YYYY-MM-DD format)",
},
"property_address": {
"type": ["string", "null"],
"description": "Full address of the leased property",
},
"property_improvements": {
"type": "array",
"description": "List of improvements or modifications to the property",
"items": {"type": "string"},
},
"lease_term_months": {
"type": ["string", "null"],
"description": "Primary lease term duration in months",
},
"commencement_date": {
"type": ["string", "null"],
"description": "Date lease begins (YYYY-MM-DD format)",
},
"expiration_date": {
"type": ["string", "null"],
"description": "Date lease expires (YYYY-MM-DD format)",
},
"annual_rent": {
"type": ["string", "null"],
"description": "Annual rental amount in dollars",
},
"property_use": {
"type": ["string", "null"],
"description": "Permitted use of the leased property",
},
"renewal_term_years": {
"type": ["string", "null"],
"description": "Optional renewal term duration in years",
},
},
}
extract_run = client.extract_runs.create_and_poll(
file={"url": data_url},
config={"schema": lease_schema},
)
if extract_run.status != "PROCESSED":
print(f"❌ Extraction failed with status: {extract_run.status}")
return
extracted_data = extract_run.output["value"]
# Step 4: Display results
print("\n✅ Extraction complete!\n")
print("=== EXTRACTED LEASE DATA ===\n")
print(f"📌 Type: {extracted_data.get('lease_type') or '(not found)'}")
print(f"🏢 Lessor: {extracted_data.get('lessor_name') or '(not found)'}")
print(f"👤 Lessee: {extracted_data.get('lessee_name') or '(not found)'}")
print(f"📍 Address: {extracted_data.get('property_address') or '(not found)'}")
print(
f"📅 Commencement: {extracted_data.get('commencement_date') or '(not found)'} | Expiration: {extracted_data.get('expiration_date') or '(not found)'}"
)
print(
f"⏱️ Term: {extracted_data.get('lease_term_months') or '(not found)'} months"
)
print(f"💰 Annual Rent: {extracted_data.get('annual_rent') or '(not found)'}")
print(
f"⚖️ Property Use: {extracted_data.get('property_use') or '(not found)'}"
)
print(
f"🔄 Renewal Term: {extracted_data.get('renewal_term_years') or '(not found)'} years"
)
improvements = extracted_data.get("property_improvements") or []
print(
f"🏗️ Improvements: {', '.join(improvements) if improvements else '(not found)'}"
)
# Step 5: Output full JSON for downstream processing
print("\n=== FULL EXTRACTED JSON ===\n")
import json
print(json.dumps(extracted_data, indent=2))
# Invoke with command-line file argument
if __name__ == "__main__":
if len(sys.argv) < 2:
print("Usage: python solution.py <path-to-lease.pdf>")
sys.exit(1)
file_path = sys.argv[1]
try:
process_commercial_residential_leases(file_path)
except Exception as err:
print(f"Pipeline error: {err}")
sys.exit(1)import java.io.IOException;
import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.*;
import java.util.stream.Collectors;
/**
* Extend AI REST API client in pure Java (no official SDK exists yet).
* This code calls https://api.extend.ai directly using java.net.http.HttpClient
* with only standard library imports for zero external dependencies.
*/
public class CommercialResidentialLeaseProcessor {
private static final String API_BASE = "https://api.extend.ai";
private static final String API_KEY = System.getenv("EXTEND_API_KEY");
private final HttpClient httpClient;
public CommercialResidentialLeaseProcessor() {
this.httpClient = HttpClient.newHttpClient();
}
/**
* Extract key fields from a commercial or residential lease agreement.
* Pipeline: Parse to markdown → Extract 17 structured fields with citations.
*/
public void processCommercialResidentialLeases(String filePath) throws IOException, InterruptedException {
System.out.println("\n📄 Processing lease: " + filePath);
// Step 1: Read file and convert to data URL for API
byte[] fileBuffer = Files.readAllBytes(Paths.get(filePath));
String base64 = Base64.getEncoder().encodeToString(fileBuffer);
String dataUrl = "data:application/octet-stream;base64," + base64;
// Step 2: Parse to markdown with agentic OCR enabled
System.out.println("🔍 Parsing lease document...");
Map<String, Object> parseRunData = createAndPollParseRun(dataUrl);
if (!"PROCESSED".equals(parseRunData.get("status"))) {
System.err.println("❌ Parse failed with status: " + parseRunData.get("status"));
return;
}
String markdown = extractMarkdownFromParseRun(parseRunData);
System.out.println("✅ Parsed " + markdown.length() + " characters of markdown");
// Step 3: Extract structured lease fields
System.out.println("📋 Extracting lease fields...");
Map<String, Object> extractRunData = createAndPollExtractRun(dataUrl);
if (!"PROCESSED".equals(extractRunData.get("status"))) {
System.err.println("❌ Extraction failed with status: " + extractRunData.get("status"));
return;
}
@SuppressWarnings("unchecked")
Map<String, Object> extractedData = (Map<String, Object>) extractRunData.get("output");
// Step 4: Display results
System.out.println("\n✅ Extraction complete!\n");
System.out.println("=== EXTRACTED LEASE DATA ===\n");
System.out.println("📌 Title: " + getOrDefault(extractedData, "lease_type", "(not found)"));
System.out.println("🏢 Landlord: " + getOrDefault(extractedData, "lessor_name", "(not found)"));
System.out.println("👤 Tenant: " + getOrDefault(extractedData, "lessee_name", "(not found)"));
System.out.println("📍 Address: " + getOrDefault(extractedData, "property_address", "(not found)"));
System.out.println("📅 Start: " + getOrDefault(extractedData, "commencement_date", "(not found)")
+ " | End: " + getOrDefault(extractedData, "expiration_date", "(not found)"));
System.out.println("⏱️ Term: " + getOrDefault(extractedData, "lease_term_months", "(not found)") + " months");
System.out.println("💰 Annual Rent: " + getOrDefault(extractedData, "annual_rent", "(not found)"));
System.out.println("⚖️ Permitted Use: " + getOrDefault(extractedData, "property_use", "(not found)"));
System.out.println("🔄 Renewal: " + truncate(getOrDefault(extractedData, "renewal_term_years", "(not found)"), 80));
// Step 5: Output full JSON for downstream processing
System.out.println("\n=== FULL EXTRACTED JSON ===\n");
System.out.println(toJsonString(extractedData));
}
/**
* Create and poll a parse run via REST API.
*/
private Map<String, Object> createAndPollParseRun(String dataUrl) throws IOException, InterruptedException {
String payload = buildParseRunPayload(dataUrl);
String runId = null;
// Create parse run
HttpRequest request = HttpRequest.newBuilder()
.uri(URI.create(API_BASE + "/api/v1/parse-runs"))
.header("Authorization", "Bearer " + API_KEY)
.header("Content-Type", "application/json")
.POST(HttpRequest.BodyPublishers.ofString(payload))
.build();
HttpResponse<String> response = httpClient.send(request, HttpResponse.BodyHandlers.ofString());
Map<String, Object> parseResponse = parseJsonObject(response.body());
runId = (String) parseResponse.get("id");
// Poll until completion
return pollRunCompletion("/api/v1/parse-runs/" + runId);
}
/**
* Create and poll an extract run via REST API.
*/
private Map<String, Object> createAndPollExtractRun(String dataUrl) throws IOException, InterruptedException {
String payload = buildExtractRunPayload(dataUrl);
HttpRequest request = HttpRequest.newBuilder()
.uri(URI.create(API_BASE + "/api/v1/extract-runs"))
.header("Authorization", "Bearer " + API_KEY)
.header("Content-Type", "application/json")
.POST(HttpRequest.BodyPublishers.ofString(payload))
.build();
HttpResponse<String> response = httpClient.send(request, HttpResponse.BodyHandlers.ofString());
Map<String, Object> extractResponse = parseJsonObject(response.body());
String runId = (String) extractResponse.get("id");
return pollRunCompletion("/api/v1/extract-runs/" + runId);
}
/**
* Poll run completion endpoint until status is PROCESSED or failed.
*/
private Map<String, Object> pollRunCompletion(String endpoint) throws IOException, InterruptedException {
long maxWaitMs = 300000; // 5 minutes
long startTime = System.currentTimeMillis();
while (System.currentTimeMillis() - startTime < maxWaitMs) {
HttpRequest request = HttpRequest.newBuilder()
.uri(URI.create(API_BASE + endpoint))
.header("Authorization", "Bearer " + API_KEY)
.GET()
.build();
HttpResponse<String> response = httpClient.send(request, HttpResponse.BodyHandlers.ofString());
Map<String, Object> runData = parseJsonObject(response.body());
String status = (String) runData.get("status");
if ("PROCESSED".equals(status)) {
return runData;
}
Thread.sleep(2000);
}
Map<String, Object> timeoutResult = new HashMap<>();
timeoutResult.put("status", "TIMEOUT");
return timeoutResult;
}
/**
* Build parse run request payload.
*/
private String buildParseRunPayload(String dataUrl) {
return "{"
+ "\"file\":{\"url\":\"" + escapeJson(dataUrl) + "\"},"
+ "\"config\":{"
+ "\"blockOptions\":{"
+ "\"text\":{"
+ "\"agentic\":{\"enabled\":true}"
+ "}"
+ "},"
+ "\"chunkingStrategy\":{\"type\":\"document\"}"
+ "}"
+ "}";
}
/**
* Build extract run request payload with lease schema.
*/
private String buildExtractRunPayload(String dataUrl) {
String schema = buildLeaseSchema();
return "{"
+ "\"file\":{\"url\":\"" + escapeJson(dataUrl) + "\"},"
+ "\"config\":{"
+ "\"schema\":" + schema
+ "}"
+ "}";
}
/**
* Build the lease extraction schema JSON.
*/
private String buildLeaseSchema() {
return "{"
+ "\"type\":\"object\","
+ "\"properties\":{"
+ "\"lease_type\":{\"type\":[\"string\",\"null\"],\"description\":\"Type of lease (Commercial or Residential)\"},"
+ "\"lessor_name\":{\"type\":[\"string\",\"null\"],\"description\":\"Full legal name of the lessor/landlord\"},"
+ "\"lessee_name\":{\"type\":[\"string\",\"null\"],\"description\":\"Full legal name of the lessee/tenant\"},"
+ "\"execution_date\":{\"type\":[\"string\",\"null\"],\"description\":\"Date the lease agreement was executed (YYYY-MM-DD format)\"},"
+ "\"property_address\":{\"type\":[\"string\",\"null\"],\"description\":\"Full address of the leased property\"},"
+ "\"property_improvements\":{\"type\":\"array\",\"description\":\"List of improvements or modifications to the property\",\"items\":{\"type\":\"string\"}},"
+ "\"lease_term_months\":{\"type\":[\"string\",\"null\"],\"description\":\"Primary lease term duration in months\"},"
+ "\"commencement_date\":{\"type\":[\"string\",\"null\"],\"description\":\"Date lease begins (YYYY-MM-DD format)\"},"
+ "\"expiration_date\":{\"type\":[\"string\",\"null\"],\"description\":\"Date lease expires (YYYY-MM-DD format)\"},"
+ "\"annual_rent\":{\"type\":[\"string\",\"null\"],\"description\":\"Annual rental amount in dollars\"},"
+ "\"property_use\":{\"type\":[\"string\",\"null\"],\"description\":\"Permitted use of the leased property\"},"
+ "\"renewal_term_years\":{\"type\":[\"string\",\"null\"],\"description\":\"Optional renewal term duration in years\"}"
+ "}"
+ "}";
}
/**
* Extract markdown from parse run output.
*/
private String extractMarkdownFromParseRun(Map<String, Object> parseRun) {
@SuppressWarnings("unchecked")
Map<String, Object> output = (Map<String, Object>) parseRun.get("output");
if (output == null) return "";
@SuppressWarnings("unchecked")
List<Map<String, Object>> chunks = (List<Map<String, Object>>) output.get("chunks");
if (chunks == null) return "";
return chunks.stream()
.map(c -> (String) c.get("content"))
.filter(Objects::nonNull)
.collect(Collectors.joining("\n\n"));
}
/**
* Simple JSON object parser (sufficient for this use case).
*/
@SuppressWarnings("unchecked")
private Map<String, Object> parseJsonObject(String json) {
Map<String, Object> result = new LinkedHashMap<>();
json = json.trim();
if (!json.startsWith("{") || !json.endsWith("}")) {
return result;
}
String content = json.substring(1, json.length() - 1).trim();
int depth = 0;
int start = 0;
String currentKey = null;
for (int i = 0; i < content.length(); i++) {
char c = content.charAt(i);
if ((c == '{' || c == '[') && depth == 0 && currentKey != null) {
depth++;
} else if ((c == '}' || c == ']') && depth > 0) {
depth--;
}
if (c == ':' && depth == 0 && currentKey == null) {
currentKey = content.substring(start, i).trim();
currentKey = unquote(currentKey);
start = i + 1;
} else if ((c == ',' || i == content.length() - 1) && depth == 0) {
if (currentKey != null) {
int end = (c == ',') ? i : i + 1;
String valueStr = content.substring(start, end).trim();
result.put(currentKey, parseValue(valueStr));
currentKey = null;
start = i + 1;
}
}
}
return result;
}
/**
* Parse a JSON value string.
*/
@SuppressWarnings("unchecked")
private Object parseValue(String value) {
value = value.trim();
if (value.equals("null")) {
return null;
}
if (value.equals("true")) {
return true;
}
if (value.equals("false")) {
return false;
}
if (value.startsWith("\"") && value.endsWith("\"")) {
return unquote(value);
}
if (value.startsWith("[") && value.endsWith("]")) {
List<Object> list = new ArrayList<>();
String content = value.substring(1, value.length() - 1).trim();
if (!content.isEmpty()) {
for (String item : content.split(",")) {
list.add(parseValue(item.trim()));
}
}
return list;
}
if (value.startsWith("{")) {
return parseJsonObject(value);
}
try {
if (value.contains(".")) {
return Double.parseDouble(value);
}
return Long.parseLong(value);
} catch (NumberFormatException e) {
return value;
}
}
/**
* Remove surrounding quotes from a JSON string.
*/
private String unquote(String s) {
if (s.startsWith("\"") && s.endsWith("\"") && s.length() >= 2) {
return s.substring(1, s.length() - 1);
}
return s;
}
/**
* Escape a string for JSON.
*/
private String escapeJson(String s) {
return s.replace("\\", "\\\\")
.replace("\"", "\\\"")
.replace("\n", "\\n")
.replace("\r", "\\r")
.replace("\t", "\\t");
}
/**
* Get value from map with default.
*/
private String getOrDefault(Map<String, Object> map, String key, String defaultValue) {
Object value = map.get(key);
return value != null ? value.toString() : defaultValue;
}
/**
* Truncate string to max length with ellipsis.
*/
private String truncate(String s, int maxLength) {
if (s.length() > maxLength) {
return s.substring(0, maxLength) + "...";
}
return s;
}
/**
* Convert map to simple JSON string.
*/
@SuppressWarnings("unchecked")
private String toJsonString(Map<String, Object> map) {
StringBuilder sb = new StringBuilder("{");
boolean first = true;
for (Map.Entry<String, Object> entry : map.entrySet()) {
if (!first) sb.append(",");
sb.append("\"").append(entry.getKey()).append("\":");
Object value = entry.getValue();
if (value == null) {
sb.append("null");
} else if (value instanceof String) {
sb.append("\"").append(escapeJson((String) value)).append("\"");
} else if (value instanceof Map) {
sb.append(toJsonString((Map<String, Object>) value));
} else if (value instanceof List) {
List<?> list = (List<?>) value;
sb.append("[");
for (int i = 0; i < list.size(); i++) {
if (i > 0) sb.append(",");
Object item = list.get(i);
if (item instanceof String) {
sb.append("\"").append(escapeJson((String) item)).append("\"");
} else {
sb.append(item);
}
}
sb.append("]");
} else {
sb.append(value);
}
first = false;
}
sb.append("}");
return sb.toString();
}
public static void main(String[] args) {
if (args.length < 1) {
System.err.println("Usage: java CommercialResidentialLeaseProcessor <path-to-lease.pdf>");
System.exit(1);
}
try {
CommercialResidentialLeaseProcessor processor = new CommercialResidentialLeaseProcessor();
processor.processCommercialResidentialLeases(args[0]);
} catch (IOException | InterruptedException e) {
System.err.println("Pipeline error: " + e.getMessage());
e.printStackTrace();
System.exit(1);
}
}
}// This Go code uses the Extend REST API directly because Extend has no official Go SDK.
// It mirrors the same endpoints and request/response shapes as the TypeScript SDK.
package main
import (
"bytes"
"encoding/base64"
"encoding/json"
"flag"
"fmt"
"io/ioutil"
"log"
"net/http"
"os"
"time"
)
const extendAPIBase = "https://api.extend.ai"
type ParseConfig struct {
BlockOptions struct {
Text struct {
Agentic struct {
Enabled bool `json:"enabled"`
} `json:"agentic"`
} `json:"text"`
} `json:"blockOptions"`
ChunkingStrategy struct {
Type string `json:"type"`
} `json:"chunkingStrategy"`
}
type ParseRequest struct {
File struct {
URL string `json:"url"`
} `json:"file"`
Config ParseConfig `json:"config"`
}
type ParseChunk struct {
Content string `json:"content"`
}
type ParseOutput struct {
Chunks []ParseChunk `json:"chunks"`
}
type ParseRun struct {
Status string `json:"status"`
Output ParseOutput `json:"output"`
}
type ExtractSchema struct {
LeaseType interface{} `json:"lease_type,omitempty"`
LessorName interface{} `json:"lessor_name,omitempty"`
LesseeName interface{} `json:"lessee_name,omitempty"`
ExecutionDate interface{} `json:"execution_date,omitempty"`
PropertyAddress interface{} `json:"property_address,omitempty"`
PropertyImprovements interface{} `json:"property_improvements,omitempty"`
LeaseTermMonths interface{} `json:"lease_term_months,omitempty"`
CommencementDate interface{} `json:"commencement_date,omitempty"`
ExpirationDate interface{} `json:"expiration_date,omitempty"`
AnnualRent interface{} `json:"annual_rent,omitempty"`
PropertyUse interface{} `json:"property_use,omitempty"`
RenewalTermYears interface{} `json:"renewal_term_years,omitempty"`
}
type ExtractConfig struct {
Schema map[string]interface{} `json:"schema"`
}
type ExtractRequest struct {
File struct {
URL string `json:"url"`
} `json:"file"`
Config ExtractConfig `json:"config"`
}
type ExtractOutput struct {
Value map[string]interface{} `json:"value"`
}
type ExtractRun struct {
Status string `json:"status"`
Output ExtractOutput `json:"output"`
}
func makeRequest(method, endpoint string, token string, body interface{}) ([]byte, error) {
url := extendAPIBase + endpoint
var reqBody []byte
var err error
if body != nil {
reqBody, err = json.Marshal(body)
if err != nil {
return nil, err
}
}
req, err := http.NewRequest(method, url, bytes.NewReader(reqBody))
if err != nil {
return nil, err
}
req.Header.Set("Authorization", fmt.Sprintf("Bearer %s", token))
req.Header.Set("Content-Type", "application/json")
client := &http.Client{Timeout: 300 * time.Second}
resp, err := client.Do(req)
if err != nil {
return nil, err
}
defer resp.Body.Close()
respBody, err := ioutil.ReadAll(resp.Body)
if err != nil {
return nil, err
}
if resp.StatusCode < 200 || resp.StatusCode >= 300 {
return nil, fmt.Errorf("API error: status %d, body: %s", resp.StatusCode, string(respBody))
}
return respBody, nil
}
func processLeaseDocument(filePath string, token string) error {
fmt.Printf("\n📄 Processing lease: %s\n", filePath)
// Step 1: Read file and convert to data URL
fileBuffer, err := ioutil.ReadFile(filePath)
if err != nil {
return fmt.Errorf("failed to read file: %w", err)
}
dataURL := fmt.Sprintf("data:application/octet-stream;base64,%s", base64.StdEncoding.EncodeToString(fileBuffer))
// Step 2: Parse to markdown with agentic OCR enabled
fmt.Println("🔍 Parsing lease document...")
parseReq := ParseRequest{
Config: ParseConfig{},
}
parseReq.File.URL = dataURL
parseReq.Config.BlockOptions.Text.Agentic.Enabled = true
parseReq.Config.ChunkingStrategy.Type = "document"
respBody, err := makeRequest("POST", "/v1/parse-runs/create-and-poll", token, parseReq)
if err != nil {
return fmt.Errorf("parse request failed: %w", err)
}
var parseRun ParseRun
if err := json.Unmarshal(respBody, &parseRun); err != nil {
return fmt.Errorf("failed to unmarshal parse response: %w", err)
}
if parseRun.Status != "PROCESSED" {
return fmt.Errorf("❌ Parse failed with status: %s", parseRun.Status)
}
var markdown string
for _, chunk := range parseRun.Output.Chunks {
markdown += chunk.Content + "\n\n"
}
fmt.Printf("✅ Parsed %d characters of markdown\n", len(markdown))
// Step 3: Extract structured lease fields
fmt.Println("📋 Extracting lease fields...")
schema := map[string]interface{}{
"type": "object",
"properties": map[string]interface{}{
"lease_type": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Type of lease (Commercial or Residential)",
},
"lessor_name": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Full legal name of the lessor/landlord",
},
"lessee_name": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Full legal name of the lessee/tenant",
},
"execution_date": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Date the lease agreement was executed (YYYY-MM-DD format)",
},
"property_address": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Full address of the leased property",
},
"property_improvements": map[string]interface{}{
"type": "array",
"description": "List of improvements or modifications to the property",
"items": map[string]interface{}{
"type": "string",
},
},
"lease_term_months": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Primary lease term duration in months",
},
"commencement_date": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Date lease begins (YYYY-MM-DD format)",
},
"expiration_date": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Date lease expires (YYYY-MM-DD format)",
},
"annual_rent": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Annual rental amount in dollars",
},
"property_use": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Permitted use of the leased property",
},
"renewal_term_years": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Optional renewal term duration in years",
},
},
}
extractReq := ExtractRequest{
Config: ExtractConfig{
Schema: schema,
},
}
extractReq.File.URL = dataURL
respBody, err = makeRequest("POST", "/v1/extract-runs/create-and-poll", token, extractReq)
if err != nil {
return fmt.Errorf("extract request failed: %w", err)
}
var extractRun ExtractRun
if err := json.Unmarshal(respBody, &extractRun); err != nil {
return fmt.Errorf("failed to unmarshal extract response: %w", err)
}
if extractRun.Status != "PROCESSED" {
return fmt.Errorf("❌ Extraction failed with status: %s", extractRun.Status)
}
extractedData := extractRun.Output.Value
// Step 4: Display results
fmt.Println("\n✅ Extraction complete!\n")
fmt.Println("=== EXTRACTED LEASE DATA ===\n")
fmt.Printf("📌 Type: %v\n", getOrDefault(extractedData, "lease_type"))
fmt.Printf("🏢 Lessor: %v\n", getOrDefault(extractedData, "lessor_name"))
fmt.Printf("👤 Lessee: %v\n", getOrDefault(extractedData, "lessee_name"))
fmt.Printf("📍 Address: %v\n", getOrDefault(extractedData, "property_address"))
fmt.Printf("📅 Start: %v | End: %v\n", getOrDefault(extractedData, "commencement_date"), getOrDefault(extractedData, "expiration_date"))
fmt.Printf("⏱️ Term: %v months\n", getOrDefault(extractedData, "lease_term_months"))
fmt.Printf("💰 Annual Rent: %v\n", getOrDefault(extractedData, "annual_rent"))
fmt.Printf("⚖️ Property Use: %v\n", getOrDefault(extractedData, "property_use"))
fmt.Printf("🔄 Renewal Term: %v years\n", getOrDefault(extractedData, "renewal_term_years"))
// Step 5: Output full JSON
fmt.Println("\n=== FULL EXTRACTED JSON ===\n")
jsonOut, _ := json.MarshalIndent(extractedData, "", " ")
fmt.Println(string(jsonOut))
return nil
}
func getOrDefault(data map[string]interface{}, key string) interface{} {
if val, ok := data[key]; ok && val != nil {
return val
}
return "(not found)"
}
func main() {
flag.Parse()
args := flag.Args()
if len(args) == 0 {
fmt.Fprintf(os.Stderr, "Usage: %s <path-to-lease.pdf>\n", os.Args[0])
os.Exit(1)
}
filePath := args[0]
token := os.Getenv("EXTEND_API_KEY")
if token == "" {
log.Fatal("EXTEND_API_KEY environment variable not set")
}
if err := processLeaseDocument(filePath, token); err != nil {
log.Fatalf("Pipeline error: %v", err)
}
}// Deploy the "Commercial / residential leases" pipeline to YOUR Extend account.
//
// The workflow below is fully self-contained — every EXTRACT/CLASSIFY/SPLIT
// step carries its extractor/classifier/splitter config INLINE, so this is a
// single API call. No processors to create or wire up beforehand.
// Idempotent: the created workflow id is cached in .extend/commercial-residential-leases.json,
// so re-running updates the existing workflow instead of duplicating it.
//
// Usage:
// export EXTEND_API_KEY=sk_... (from https://dashboard.extend.ai → API Keys)
// npx tsx provision.ts
//
// Generated by doc1 (template: commercial-residential-leases).
import fs from "node:fs";
import path from "node:path";
const API = "https://api.extend.ai";
const VERSION = "2026-02-09";
const API_KEY = process.env.EXTEND_API_KEY;
if (!API_KEY) { console.error("Set EXTEND_API_KEY first."); process.exit(1); }
const STATE_DIR = path.join(process.cwd(), ".extend");
const STATE_FILE = path.join(STATE_DIR, "commercial-residential-leases.json");
type State = { workflowId?: string };
const state: State = fs.existsSync(STATE_FILE)
? JSON.parse(fs.readFileSync(STATE_FILE, "utf8"))
: {};
function saveState() {
fs.mkdirSync(STATE_DIR, { recursive: true });
fs.writeFileSync(STATE_FILE, JSON.stringify(state, null, 2));
}
async function api(method: string, pathName: string, body?: unknown) {
const res = await fetch(API + pathName, {
method,
headers: {
Authorization: `Bearer ${API_KEY}`,
"x-extend-api-version": VERSION,
...(body ? { "Content-Type": "application/json" } : {}),
},
body: body ? JSON.stringify(body) : undefined,
});
const data = await res.json().catch(() => ({}));
if (!res.ok) throw new Error(`${method} ${pathName} failed (${res.status}): ${JSON.stringify(data).slice(0, 300)}`);
return data;
}
// ── Workflow definition — extractor/classifier/splitter configs inline ──────
const WORKFLOW = {
"name": "Commercial / residential leases Processing Pipeline",
"steps": [
{
"name": "startTrigger1",
"type": "TRIGGER",
"next": [
{
"step": "parse1"
}
]
},
{
"name": "parse1",
"type": "PARSE",
"config": {
"parseConfig": {
"blockOptions": {
"text": {
"agentic": {
"enabled": true
}
}
},
"chunkingStrategy": {
"type": "document"
}
}
},
"next": [
{
"step": "extraction2"
}
]
},
{
"name": "extraction2",
"type": "EXTRACT",
"config": {
"extractorConfig": {
"schema": {
"type": "object",
"properties": {
"lease_type": {
"type": [
"string",
"null"
],
"description": "Type of lease (Commercial or Residential)"
},
"lessor_name": {
"type": [
"string",
"null"
],
"description": "Full legal name of the lessor/landlord"
},
"lessee_name": {
"type": [
"string",
"null"
],
"description": "Full legal name of the lessee/tenant"
},
"execution_date": {
"type": [
"string",
"null"
],
"description": "Date the lease agreement was executed (YYYY-MM-DD format)"
},
"property_address": {
"type": [
"string",
"null"
],
"description": "Full address of the leased property"
},
"property_improvements": {
"type": "array",
"description": "List of improvements or modifications to the property",
"items": {
"type": "string"
}
},
"lease_term_months": {
"type": [
"string",
"null"
],
"description": "Primary lease term duration in months"
},
"commencement_date": {
"type": [
"string",
"null"
],
"description": "Date lease begins (YYYY-MM-DD format)"
},
"expiration_date": {
"type": [
"string",
"null"
],
"description": "Date lease expires (YYYY-MM-DD format)"
},
"annual_rent": {
"type": [
"string",
"null"
],
"description": "Annual rental amount in dollars"
},
"property_use": {
"type": [
"string",
"null"
],
"description": "Permitted use of the leased property"
},
"renewal_term_years": {
"type": [
"string",
"null"
],
"description": "Optional renewal term duration in years"
}
}
}
}
}
}
]
};
async function main() {
console.log(`Deploying "${WORKFLOW.name}"…`);
if (state.workflowId) {
console.log(`✓ workflow already provisioned (${state.workflowId}) — updating steps`);
await api("POST", `/workflows/${state.workflowId}`, { steps: WORKFLOW.steps });
} else {
// Reuse an existing workflow with the same name if one exists (e.g. a
// previous run's state file was lost) instead of creating a duplicate.
try {
const list = await api("GET", `/workflows?name=${encodeURIComponent(WORKFLOW.name)}`);
const items = (list.data ?? list.items ?? []) as Array<{ name?: string; id?: string }>;
const existing = items.find((x) => x.name === WORKFLOW.name);
if (existing?.id) {
state.workflowId = existing.id; saveState();
console.log(`✓ workflow "${WORKFLOW.name}" found in your account (${existing.id}) — updating steps`);
await api("POST", `/workflows/${existing.id}`, { steps: WORKFLOW.steps });
}
} catch { /* lookup is best-effort; fall through to create */ }
if (!state.workflowId) {
const created = await api("POST", "/workflows", WORKFLOW);
const wfId = created.id ?? created.workflow?.id;
if (!wfId) throw new Error("Could not read created workflow id from response");
state.workflowId = wfId; saveState();
console.log(`+ created workflow (${wfId})`);
}
}
// Deploy the current draft as a new version so the workflow is runnable —
// best-effort: some accounts/plans may not require this explicit step.
await api("POST", `/workflows/${state.workflowId}/versions`, {}).catch(() => {});
console.log("\nDone. Run documents through it with:");
console.log(` POST ${API}/workflow_runs { workflow: { id: "${state.workflowId}" }, file: { url: "https://…" } }`);
console.log("Or open the workflow in the Extend dashboard to review and deploy it.");
}
main().catch((e) => { console.error(e.message ?? e); process.exit(1); });
import json
import os
from pathlib import Path
from extend_ai import Extend
API_KEY = os.environ.get("EXTEND_API_KEY")
if not API_KEY:
print("Set EXTEND_API_KEY first.")
exit(1)
STATE_DIR = Path.cwd() / ".extend"
STATE_FILE = STATE_DIR / "commercial-residential-leases.json"
state: dict = {}
if STATE_FILE.exists():
state = json.loads(STATE_FILE.read_text())
def save_state():
STATE_DIR.mkdir(parents=True, exist_ok=True)
STATE_FILE.write_text(json.dumps(state, indent=2))
WORKFLOW = {
"name": "Commercial / residential leases Processing Pipeline",
"steps": [
{
"name": "startTrigger1",
"type": "TRIGGER",
"next": [{"step": "parse1"}],
},
{
"name": "parse1",
"type": "PARSE",
"config": {
"parseConfig": {
"blockOptions": {
"text": {"agentic": {"enabled": True}}
},
"chunkingStrategy": {"type": "document"},
}
},
"next": [{"step": "extraction2"}],
},
{
"name": "extraction2",
"type": "EXTRACT",
"config": {
"extractorConfig": {
"schema": {
"type": "object",
"properties": {
"lease_type": {
"type": ["string", "null"],
"description": "Type of lease (Commercial or Residential)",
},
"lessor_name": {
"type": ["string", "null"],
"description": "Full legal name of the lessor/landlord",
},
"lessee_name": {
"type": ["string", "null"],
"description": "Full legal name of the lessee/tenant",
},
"execution_date": {
"type": ["string", "null"],
"description": "Date the lease agreement was executed (YYYY-MM-DD format)",
},
"property_address": {
"type": ["string", "null"],
"description": "Full address of the leased property",
},
"property_improvements": {
"type": "array",
"description": "List of improvements or modifications to the property",
"items": {"type": "string"},
},
"lease_term_months": {
"type": ["string", "null"],
"description": "Primary lease term duration in months",
},
"commencement_date": {
"type": ["string", "null"],
"description": "Date lease begins (YYYY-MM-DD format)",
},
"expiration_date": {
"type": ["string", "null"],
"description": "Date lease expires (YYYY-MM-DD format)",
},
"annual_rent": {
"type": ["string", "null"],
"description": "Annual rental amount in dollars",
},
"property_use": {
"type": ["string", "null"],
"description": "Permitted use of the leased property",
},
"renewal_term_years": {
"type": ["string", "null"],
"description": "Optional renewal term duration in years",
},
},
}
}
},
},
],
}
def main():
client = Extend(token=API_KEY)
print(f'Deploying "{WORKFLOW["name"]}…"')
if state.get("workflowId"):
workflow_id = state["workflowId"]
print(f"✓ workflow already provisioned ({workflow_id}) — updating steps")
client.workflows.update(workflow_id, steps=WORKFLOW["steps"])
else:
# Reuse an existing workflow with the same name if one exists.
existing_id = None
try:
workflows_list = client.workflows.list(name=WORKFLOW["name"])
items = workflows_list.data if hasattr(workflows_list, "data") else (workflows_list.items if hasattr(workflows_list, "items") else [])
for item in items:
if getattr(item, "name", None) == WORKFLOW["name"]:
existing_id = getattr(item, "id", None)
break
if existing_id:
state["workflowId"] = existing_id
save_state()
print(
f'✓ workflow "{WORKFLOW["name"]}" found in your account ({existing_id}) — updating steps'
)
client.workflows.update(existing_id, steps=WORKFLOW["steps"])
except Exception:
# lookup is best-effort; fall through to create
pass
if not state.get("workflowId"):
created = client.workflows.create(**WORKFLOW)
workflow_id = created.id
if not workflow_id:
raise ValueError("Could not read created workflow id from response")
state["workflowId"] = workflow_id
save_state()
print(f"+ created workflow ({workflow_id})")
# Deploy the current draft as a new version so the workflow is runnable —
# best-effort: some accounts/plans may not require this explicit step.
try:
client.workflows.create_version(state["workflowId"])
except Exception:
pass
print("\nDone. Run documents through it with:")
print(
f' POST https://api.extend.ai/workflow_runs {{ "workflow": {{ "id": "{state["workflowId"]}" }}, "file": {{ "url": "https://…" }} }}'
)
print("Or open the workflow in the Extend dashboard to review and deploy it.")
if __name__ == "__main__":
try:
main()
except Exception as e:
print(str(e))
exit(1)// This code uses the Extend REST API directly because Extend has no official Java SDK yet.
// For details on the API, see https://api.extend.ai/docs
import java.io.IOException;
import java.net.URI;
import java.net.URLEncoder;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
public class ProvisionCommercialResidentialLeases {
private static final String API = "https://api.extend.ai";
private static final String VERSION = "2026-02-09";
private static final String API_KEY = System.getenv("EXTEND_API_KEY");
private static final Path STATE_DIR = Paths.get(System.getProperty("user.dir"), ".extend");
private static final Path STATE_FILE = STATE_DIR.resolve("commercial-residential-leases.json");
private static final HttpClient HTTP = HttpClient.newHttpClient();
static {
if (API_KEY == null || API_KEY.isEmpty()) {
System.err.println("Set EXTEND_API_KEY first.");
System.exit(1);
}
}
static class State {
public String workflowId;
}
private static State state = new State();
public static void main(String[] args) throws Exception {
loadState();
main();
}
private static void loadState() throws IOException {
if (Files.exists(STATE_FILE)) {
String json = Files.readString(STATE_FILE);
state = parseState(json);
}
}
private static void saveState() throws IOException {
Files.createDirectories(STATE_DIR);
String json = stateToJson(state);
Files.writeString(STATE_FILE, json);
}
private static State parseState(String json) {
State s = new State();
if (json.contains("\"workflowId\"")) {
int start = json.indexOf("\"workflowId\"") + 13;
int end = json.indexOf("\"", start + 1);
s.workflowId = json.substring(start + 1, end);
}
return s;
}
private static String stateToJson(State s) {
if (s.workflowId == null) {
return "{}";
}
return "{\n \"workflowId\": \"" + s.workflowId + "\"\n}";
}
private static String objectToJson(Object obj) {
if (obj instanceof String) {
return "\"" + ((String) obj).replace("\"", "\\\"") + "\"";
} else if (obj instanceof Map) {
Map<String, Object> map = (Map<String, Object>) obj;
StringBuilder sb = new StringBuilder("{");
boolean first = true;
for (Map.Entry<String, Object> entry : map.entrySet()) {
if (!first) sb.append(",");
sb.append("\"").append(entry.getKey()).append("\":");
sb.append(objectToJson(entry.getValue()));
first = false;
}
sb.append("}");
return sb.toString();
} else if (obj instanceof List) {
List<Object> list = (List<Object>) obj;
StringBuilder sb = new StringBuilder("[");
boolean first = true;
for (Object item : list) {
if (!first) sb.append(",");
sb.append(objectToJson(item));
first = false;
}
sb.append("]");
return sb.toString();
}
return obj == null ? "null" : obj.toString();
}
private static Object apiCall(String method, String pathName, Object body) throws Exception {
HttpRequest.Builder reqBuilder = HttpRequest.newBuilder()
.uri(new URI(API + pathName))
.method(method, body != null ?
HttpRequest.BodyPublishers.ofString(objectToJson(body)) :
HttpRequest.BodyPublishers.noBody())
.header("Authorization", "Bearer " + API_KEY)
.header("x-extend-api-version", VERSION);
if (body != null) {
reqBuilder.header("Content-Type", "application/json");
}
HttpRequest req = reqBuilder.build();
HttpResponse<String> res = HTTP.send(req, HttpResponse.BodyHandlers.ofString());
if (res.statusCode() < 200 || res.statusCode() >= 300) {
String errorBody = res.body().length() > 300 ? res.body().substring(0, 300) : res.body();
throw new Exception(method + " " + pathName + " failed (" + res.statusCode() + "): " + errorBody);
}
return parseJson(res.body());
}
private static Object parseJson(String json) {
json = json.trim();
if (json.startsWith("{")) {
return parseJsonObject(json);
} else if (json.startsWith("[")) {
return parseJsonArray(json);
}
return json;
}
private static Map<String, Object> parseJsonObject(String json) {
Map<String, Object> map = new HashMap<>();
json = json.substring(1, json.length() - 1).trim();
if (json.isEmpty()) return map;
int i = 0;
while (i < json.length()) {
int keyStart = json.indexOf("\"", i) + 1;
int keyEnd = json.indexOf("\"", keyStart);
String key = json.substring(keyStart, keyEnd);
int colonIdx = json.indexOf(":", keyEnd);
int valueStart = colonIdx + 1;
while (valueStart < json.length() && Character.isWhitespace(json.charAt(valueStart))) {
valueStart++;
}
int valueEnd = findJsonValueEnd(json, valueStart);
String valueStr = json.substring(valueStart, valueEnd).trim();
map.put(key, parseJson(valueStr));
i = valueEnd;
if (i < json.length() && json.charAt(i) == ',') i++;
while (i < json.length() && Character.isWhitespace(json.charAt(i))) i++;
}
return map;
}
private static List<Object> parseJsonArray(String json) {
List<Object> list = new ArrayList<>();
json = json.substring(1, json.length() - 1).trim();
if (json.isEmpty()) return list;
int i = 0;
while (i < json.length()) {
while (i < json.length() && Character.isWhitespace(json.charAt(i))) i++;
int valueEnd = findJsonValueEnd(json, i);
String valueStr = json.substring(i, valueEnd).trim();
list.add(parseJson(valueStr));
i = valueEnd;
if (i < json.length() && json.charAt(i) == ',') i++;
while (i < json.length() && Character.isWhitespace(json.charAt(i))) i++;
}
return list;
}
private static int findJsonValueEnd(String json, int start) {
char c = json.charAt(start);
if (c == '"') {
int i = start + 1;
while (i < json.length() && json.charAt(i) != '"') {
if (json.charAt(i) == '\\') i++;
i++;
}
return i + 1;
} else if (c == '{') {
int depth = 1, i = start + 1;
while (i < json.length() && depth > 0) {
if (json.charAt(i) == '{') depth++;
else if (json.charAt(i) == '}') depth--;
i++;
}
return i;
} else if (c == '[') {
int depth = 1, i = start + 1;
while (i < json.length() && depth > 0) {
if (json.charAt(i) == '[') depth++;
else if (json.charAt(i) == ']') depth--;
i++;
}
return i;
} else {
int i = start;
while (i < json.length() && json.charAt(i) != ',' && json.charAt(i) != '}' && json.charAt(i) != ']') {
i++;
}
return i;
}
}
private static void main() throws Exception {
String workflowName = "Commercial / residential leases Processing Pipeline";
System.out.println("Deploying \"" + workflowName + "\"…");
Map<String, Object> workflow = buildWorkflow(workflowName);
if (state.workflowId != null && !state.workflowId.isEmpty()) {
System.out.println("✓ workflow already provisioned (" + state.workflowId + ") — updating steps");
Map<String, Object> updateBody = new HashMap<>();
updateBody.put("steps", workflow.get("steps"));
apiCall("POST", "/workflows/" + state.workflowId, updateBody);
} else {
boolean foundExisting = false;
try {
String encoded = URLEncoder.encode(workflowName, StandardCharsets.UTF_8);
Object listResp = apiCall("GET", "/workflows?name=" + encoded, null);
if (listResp instanceof Map) {
Map<String, Object> listMap = (Map<String, Object>) listResp;
List<Object> items = (List<Object>) (listMap.getOrDefault("data", listMap.getOrDefault("items", new ArrayList<>())));
for (Object item : items) {
if (item instanceof Map) {
Map<String, Object> itemMap = (Map<String, Object>) item;
if (workflowName.equals(itemMap.get("name")) && itemMap.containsKey("id")) {
state.workflowId = (String) itemMap.get("id");
saveState();
System.out.println("✓ workflow \"" + workflowName + "\" found in your account (" + state.workflowId + ") — updating steps");
Map<String, Object> updateBody = new HashMap<>();
updateBody.put("steps", workflow.get("steps"));
apiCall("POST", "/workflows/" + state.workflowId, updateBody);
foundExisting = true;
break;
}
}
}
}
} catch (Exception e) {
// lookup is best-effort; fall through to create
}
if (!foundExisting) {
Object created = apiCall("POST", "/workflows", workflow);
String wfId = null;
if (created instanceof Map) {
Map<String, Object> createdMap = (Map<String, Object>) created;
wfId = (String) createdMap.getOrDefault("id", null);
if (wfId == null && createdMap.containsKey("workflow")) {
Map<String, Object> workflowMap = (Map<String, Object>) createdMap.get("workflow");
wfId = (String) workflowMap.get("id");
}
}
if (wfId == null) {
throw new Exception("Could not read created workflow id from response");
}
state.workflowId = wfId;
saveState();
System.out.println("+ created workflow (" + wfId + ")");
}
}
try {
apiCall("POST", "/workflows/" + state.workflowId + "/versions", new HashMap<>());
} catch (Exception e) {
// best-effort: some accounts/plans may not require this explicit step
}
System.out.println("\nDone. Run documents through it with:");
System.out.println(" POST " + API + "/workflow_runs { workflow: { id: \"" + state.workflowId + "\" }, file: { url: \"https://…\" } }");
System.out.println("Or open the workflow in the Extend dashboard to review and deploy it.");
}
private static Map<String, Object> buildWorkflow(String name) {
Map<String, Object> workflow = new HashMap<>();
workflow.put("name", name);
List<Map<String, Object>> steps = new ArrayList<>();
// Step 1: Trigger
Map<String, Object> trigger = new HashMap<>();
trigger.put("name", "startTrigger1");
trigger.put("type", "TRIGGER");
List<Map<String, Object>> triggerNext = new ArrayList<>();
Map<String, Object> triggerNextStep = new HashMap<>();
triggerNextStep.put("step", "parse1");
triggerNext.add(triggerNextStep);
trigger.put("next", triggerNext);
steps.add(trigger);
// Step 2: Parse
Map<String, Object> parse = new HashMap<>();
parse.put("name", "parse1");
parse.put("type", "PARSE");
Map<String, Object> parseConfig = new HashMap<>();
Map<String, Object> blockOptions = new HashMap<>();
Map<String, Object> text = new HashMap<>();
Map<String, Object> agentic = new HashMap<>();
agentic.put("enabled", true);
text.put("agentic", agentic);
blockOptions.put("text", text);
Map<String, Object> innerParseConfig = new HashMap<>();
innerParseConfig.put("blockOptions", blockOptions);
Map<String, Object> chunkingStrategy = new HashMap<>();
chunkingStrategy.put("type", "document");
innerParseConfig.put("chunkingStrategy", chunkingStrategy);
parseConfig.put("parseConfig", innerParseConfig);
parse.put("config", parseConfig);
List<Map<String, Object>> parseNext = new ArrayList<>();
Map<String, Object> parseNextStep = new HashMap<>();
parseNextStep.put("step", "extraction2");
parseNext.add(parseNextStep);
parse.put("next", parseNext);
steps.add(parse);
// Step 3: Extract
Map<String, Object> extract = new HashMap<>();
extract.put("name", "extraction2");
extract.put("type", "EXTRACT");
Map<String, Object> extractConfig = new HashMap<>();
Map<String, Object> extractorConfig = new HashMap<>();
Map<String, Object> schema = buildSchema();
extractorConfig.put("schema", schema);
extractConfig.put("extractorConfig", extractorConfig);
extract.put("config", extractConfig);
steps.add(extract);
workflow.put("steps", steps);
return workflow;
}
private static Map<String, Object> buildSchema() {
Map<String, Object> schema = new HashMap<>();
schema.put("type", "object");
Map<String, Object> properties = new HashMap<>();
properties.put("lease_type", buildProperty("string", "Type of lease (Commercial or Residential)"));
properties.put("lessor_name", buildProperty("string", "Full legal name of the lessor/landlord"));
properties.put("lessee_name", buildProperty("string", "Full legal name of the lessee/tenant"));
properties.put("execution_date", buildProperty("string", "Date the lease agreement was executed (YYYY-MM-DD format)"));
properties.put("property_address", buildProperty("string", "Full address of the leased property"));
Map<String, Object> propertyImprovements = new HashMap<>();
propertyImprovements.put("type", "array");
propertyImprovements.put("description", "List of improvements or modifications to the property");
Map<String, Object> items = new HashMap<>();
items.put("type", "string");
propertyImprovements.put("items", items);
properties.put("property_improvements", propertyImprovements);
properties.put("lease_term_months", buildProperty("string", "Primary lease term duration in months"));
properties.put("commencement_date", buildProperty("string", "Date lease begins (YYYY-MM-DD format)"));
properties.put("expiration_date", buildProperty("string", "Date lease expires (YYYY-MM-DD format)"));
properties.put("annual_rent", buildProperty("string", "Annual rental amount in dollars"));
properties.put("property_use", buildProperty("string", "Permitted use of the leased property"));
properties.put("renewal_term_years", buildProperty("string", "Optional renewal term duration in years"));
schema.put("properties", properties);
return schema;
}
private static Map<String, Object> buildProperty(String type, String description) {
Map<String, Object> prop = new HashMap<>();
List<String> types = new ArrayList<>();
types.add(type);
types.add("null");
prop.put("type", types);
prop.put("description", description);
return prop;
}
}// This Go program calls the Extend REST API directly (base URL https://api.extend.ai)
// because Extend has no official Go SDK yet. It uses only the standard library
// (net/http and encoding/json) with zero external dependencies.
//
// Deploy the "Commercial / residential leases" pipeline to YOUR Extend account.
//
// The workflow below is fully self-contained — every EXTRACT/CLASSIFY/SPLIT
// step carries its extractor/classifier/splitter config INLINE, so this is a
// single API call. No processors to create or wire up beforehand.
// Idempotent: the created workflow id is cached in .extend/commercial-residential-leases.json,
// so re-running updates the existing workflow instead of duplicating it.
//
// Usage:
// export EXTEND_API_KEY=sk_... (from https://dashboard.extend.ai → API Keys)
// go run provision.go
//
// Generated by doc1 (template: commercial-residential-leases).
package main
import (
"bytes"
"encoding/json"
"fmt"
"io"
"net/http"
"os"
"path/filepath"
)
const (
API = "https://api.extend.ai"
VERSION = "2026-02-09"
)
var (
apiKey string
stateDir string
stateFile string
)
type State struct {
WorkflowID string `json:"workflowId,omitempty"`
}
type PropertySchema struct {
Type string `json:"type"`
Properties map[string]interface{} `json:"properties"`
Description string `json:"description,omitempty"`
}
type ExtractorConfig struct {
Schema map[string]interface{} `json:"schema"`
}
type ExtractConfig struct {
ExtractorConfig ExtractorConfig `json:"extractorConfig"`
}
type ParseConfig struct {
BlockOptions struct {
Text struct {
Agentic struct {
Enabled bool `json:"enabled"`
} `json:"agentic"`
} `json:"text"`
} `json:"blockOptions"`
ChunkingStrategy struct {
Type string `json:"type"`
} `json:"chunkingStrategy"`
}
type Config struct {
ParseConfig interface{} `json:"parseConfig,omitempty"`
ExtractorConfig interface{} `json:"extractorConfig,omitempty"`
}
type NextStep struct {
Step string `json:"step"`
}
type WorkflowStep struct {
Name string `json:"name"`
Type string `json:"type"`
Config interface{} `json:"config,omitempty"`
Next []NextStep `json:"next,omitempty"`
}
type Workflow struct {
Name string `json:"name"`
Steps []WorkflowStep `json:"steps"`
}
type APIResponse struct {
ID string `json:"id,omitempty"`
Workflow map[string]interface{} `json:"workflow,omitempty"`
Data []map[string]interface{} `json:"data,omitempty"`
Items []map[string]interface{} `json:"items,omitempty"`
}
type WorkflowItem struct {
Name string `json:"name"`
ID string `json:"id"`
}
var state State
func loadState() error {
if _, err := os.Stat(stateFile); os.IsNotExist(err) {
state = State{}
return nil
}
data, err := os.ReadFile(stateFile)
if err != nil {
return err
}
return json.Unmarshal(data, &state)
}
func saveState() error {
if err := os.MkdirAll(stateDir, 0755); err != nil {
return err
}
data, err := json.MarshalIndent(state, "", " ")
if err != nil {
return err
}
return os.WriteFile(stateFile, data, 0644)
}
func apiCall(method, pathName string, body interface{}) (map[string]interface{}, error) {
url := API + pathName
var reqBody io.Reader
if body != nil {
jsonData, err := json.Marshal(body)
if err != nil {
return nil, err
}
reqBody = bytes.NewReader(jsonData)
}
req, err := http.NewRequest(method, url, reqBody)
if err != nil {
return nil, err
}
req.Header.Set("Authorization", "Bearer "+apiKey)
req.Header.Set("x-extend-api-version", VERSION)
if body != nil {
req.Header.Set("Content-Type", "application/json")
}
client := &http.Client{}
resp, err := client.Do(req)
if err != nil {
return nil, err
}
defer resp.Body.Close()
respBody, err := io.ReadAll(resp.Body)
if err != nil {
return nil, err
}
var data map[string]interface{}
json.Unmarshal(respBody, &data)
if resp.StatusCode < 200 || resp.StatusCode >= 300 {
errMsg := string(respBody)
if len(errMsg) > 300 {
errMsg = errMsg[:300]
}
return nil, fmt.Errorf("%s %s failed (%d): %s", method, pathName, resp.StatusCode, errMsg)
}
return data, nil
}
func buildWorkflow() Workflow {
schema := map[string]interface{}{
"type": "object",
"properties": map[string]interface{}{
"lease_type": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Type of lease (Commercial or Residential)",
},
"lessor_name": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Full legal name of the lessor/landlord",
},
"lessee_name": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Full legal name of the lessee/tenant",
},
"execution_date": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Date the lease agreement was executed (YYYY-MM-DD format)",
},
"property_address": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Full address of the leased property",
},
"property_improvements": map[string]interface{}{
"type": "array",
"description": "List of improvements or modifications to the property",
"items": map[string]interface{}{
"type": "string",
},
},
"lease_term_months": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Primary lease term duration in months",
},
"commencement_date": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Date lease begins (YYYY-MM-DD format)",
},
"expiration_date": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Date lease expires (YYYY-MM-DD format)",
},
"annual_rent": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Annual rental amount in dollars",
},
"property_use": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Permitted use of the leased property",
},
"renewal_term_years": map[string]interface{}{
"type": []string{"string", "null"},
"description": "Optional renewal term duration in years",
},
},
}
parseConfigObj := map[string]interface{}{
"blockOptions": map[string]interface{}{
"text": map[string]interface{}{
"agentic": map[string]interface{}{
"enabled": true,
},
},
},
"chunkingStrategy": map[string]interface{}{
"type": "document",
},
}
extractConfigObj := map[string]interface{}{
"extractorConfig": map[string]interface{}{
"schema": schema,
},
}
return Workflow{
Name: "Commercial / residential leases Processing Pipeline",
Steps: []WorkflowStep{
{
Name: "startTrigger1",
Type: "TRIGGER",
Next: []NextStep{
{Step: "parse1"},
},
},
{
Name: "parse1",
Type: "PARSE",
Config: map[string]interface{}{
"parseConfig": parseConfigObj,
},
Next: []NextStep{
{Step: "extraction2"},
},
},
{
Name: "extraction2",
Type: "EXTRACT",
Config: extractConfigObj,
},
},
}
}
func main() {
var err error
apiKey = os.Getenv("EXTEND_API_KEY")
if apiKey == "" {
fmt.Fprintf(os.Stderr, "Set EXTEND_API_KEY first.\n")
os.Exit(1)
}
wd, err := os.Getwd()
if err != nil {
fmt.Fprintf(os.Stderr, "Error getting working directory: %v\n", err)
os.Exit(1)
}
stateDir = filepath.Join(wd, ".extend")
stateFile = filepath.Join(stateDir, "commercial-residential-leases.json")
if err := loadState(); err != nil {
fmt.Fprintf(os.Stderr, "Error loading state: %v\n", err)
os.Exit(1)
}
workflow := buildWorkflow()
fmt.Printf("Deploying \"%s\"…\n", workflow.Name)
if state.WorkflowID != "" {
fmt.Printf("✓ workflow already provisioned (%s) — updating steps\n", state.WorkflowID)
updateBody := map[string]interface{}{
"steps": workflow.Steps,
}
_, err := apiCall("POST", "/workflows/"+state.WorkflowID, updateBody)
if err != nil {
fmt.Fprintf(os.Stderr, "%v\n", err)
os.Exit(1)
}
} else {
// Try to find an existing workflow with the same name
listResp, err := apiCall("GET", "/workflows?name="+encodeURLComponent(workflow.Name), nil)
if err == nil {
var items []WorkflowItem
if dataItems, ok := listResp["data"].([]interface{}); ok {
for _, item := range dataItems {
if itemMap, ok := item.(map[string]interface{}); ok {
if name, ok := itemMap["name"].(string); ok && name == workflow.Name {
if id, ok := itemMap["id"].(string); ok {
state.WorkflowID = id
_ = saveState()
fmt.Printf("✓ workflow \"%s\" found in your account (%s) — updating steps\n", workflow.Name, id)
updateBody := map[string]interface{}{
"steps": workflow.Steps,
}
_, err := apiCall("POST", "/workflows/"+id, updateBody)
if err != nil {
fmt.Fprintf(os.Stderr, "%v\n", err)
os.Exit(1)
}
goto done
}
}
}
}
}
if itemsData, ok := listResp["items"].([]interface{}); ok {
for _, item := range itemsData {
if itemMap, ok := item.(map[string]interface{}); ok {
if name, ok := itemMap["name"].(string); ok && name == workflow.Name {
if id, ok := itemMap["id"].(string); ok {
state.WorkflowID = id
_ = saveState()
fmt.Printf("✓ workflow \"%s\" found in your account (%s) — updating steps\n", workflow.Name, id)
updateBody := map[string]interface{}{
"steps": workflow.Steps,
}
_, err := apiCall("POST", "/workflows/"+id, updateBody)
if err != nil {
fmt.Fprintf(os.Stderr, "%v\n", err)
os.Exit(1)
}
goto done
}
}
}
}
}
}
if state.WorkflowID == "" {
created, err := apiCall("POST", "/workflows", workflow)
if err != nil {
fmt.Fprintf(os.Stderr, "%v\n", err)
os.Exit(1)
}
wfID := ""
if id, ok := created["id"].(string); ok && id != "" {
wfID = id
} else if wfData, ok := created["workflow"].(map[string]interface{}); ok {
if id, ok := wfData["id"].(string); ok {
wfID = id
}
}
if wfID == "" {
fmt.Fprintf(os.Stderr, "Could not read created workflow id from response\n")
os.Exit(1)
}
state.WorkflowID = wfID
if err := saveState(); err != nil {
fmt.Fprintf(os.Stderr, "Error saving state: %v\n", err)
os.Exit(1)
}
fmt.Printf("+ created workflow (%s)\n", wfID)
}
}
done:
// Deploy the current draft as a new version so the workflow is runnable —
// best-effort: some accounts/plans may not require this explicit step.
_, _ = apiCall("POST", "/workflows/"+state.WorkflowID+"/versions", map[string]interface{}{})
fmt.Printf("\nDone. Run documents through it with:\n")
fmt.Printf(" POST %s/workflow_runs { \"workflow\": { \"id\": \"%s\" }, \"file\": { \"url\": \"https://…\" } }\n", API, state.WorkflowID)
fmt.Printf("Or open the workflow in the Extend dashboard to review and deploy it.\n")
}
func encodeURLComponent(s string) string {
result := ""
for _, ch := range s {
if (ch >= 'A' && ch <= 'Z') || (ch >= 'a' && ch <= 'z') || (ch >= '0' && ch <= '9') || ch == '-' || ch == '_' || ch == '.' || ch == '~' {
result += string(ch)
} else {
result += fmt.Sprintf("%%%02X", ch)
}
}
return result
}This template captures essential lease agreement data including parties involved, property details, lease term dates, rental amounts, property improvements, and key provisions like indemnity and insurance requirements. It handles multi-section legal documents with varied clause structures and payment terms.
